L3级算法定义芯片，软硬结合，PPA业界最优
L3-level algorithm-defined chip, combining hardware and software, industry-leading PPA (Performance, Power, Area).
先进车规级设计，全栈自研，品质保证
Advanced automotive-grade design, fully self-developed stack, quality guaranteed.
深度定制RISC-V平台，定位计算性能提升10倍以上
Deeply customized RISC-V platform, over 10x improvement in positioning computation performance.
全系统全频点，高精度，单北斗性能最优
Full-system, full-frequency, high precision, with industry-leading performance using BeiDou alone.
片上集成自研定位算法，全场景固定率业内第一
On-chip integration of self-developed positioning algorithms, industry-leading fix rate in all scenarios.
专为城区辅助驾驶NOA定制，兼容各类高精度定位应用
Tailored for NOA (Navigation on Autopilot) in intelligent Urban Assisted Driving, compatible with various high-precision positioning applications.
车规级芯片 vs 工业级芯片
Automotive-grade vs Industrial-grade
MOJANDA芯片

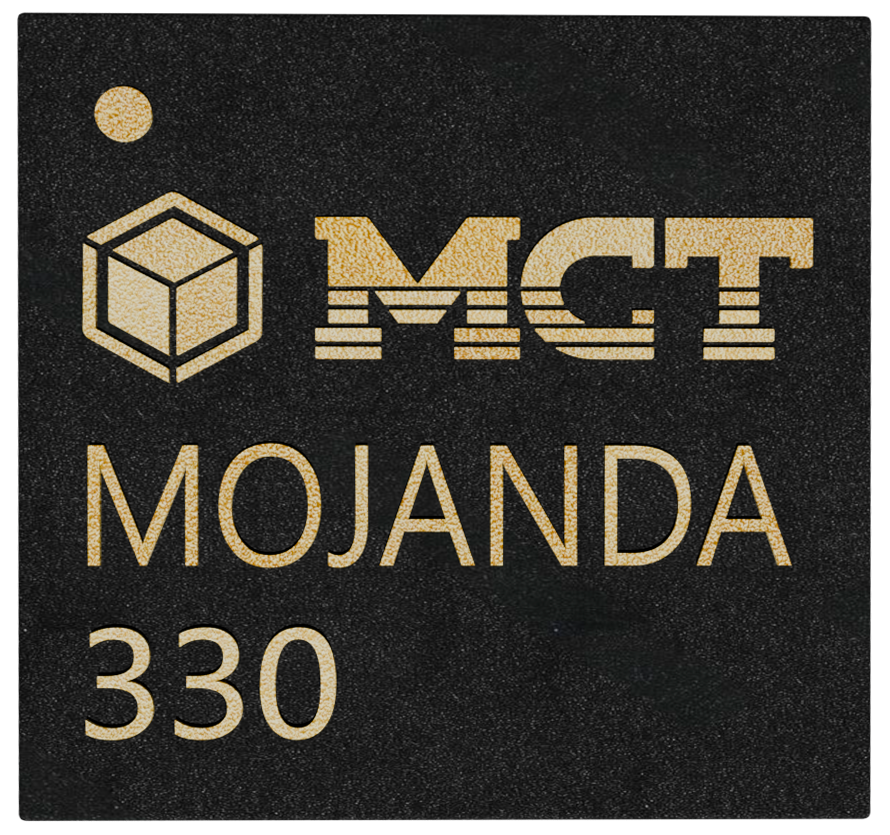

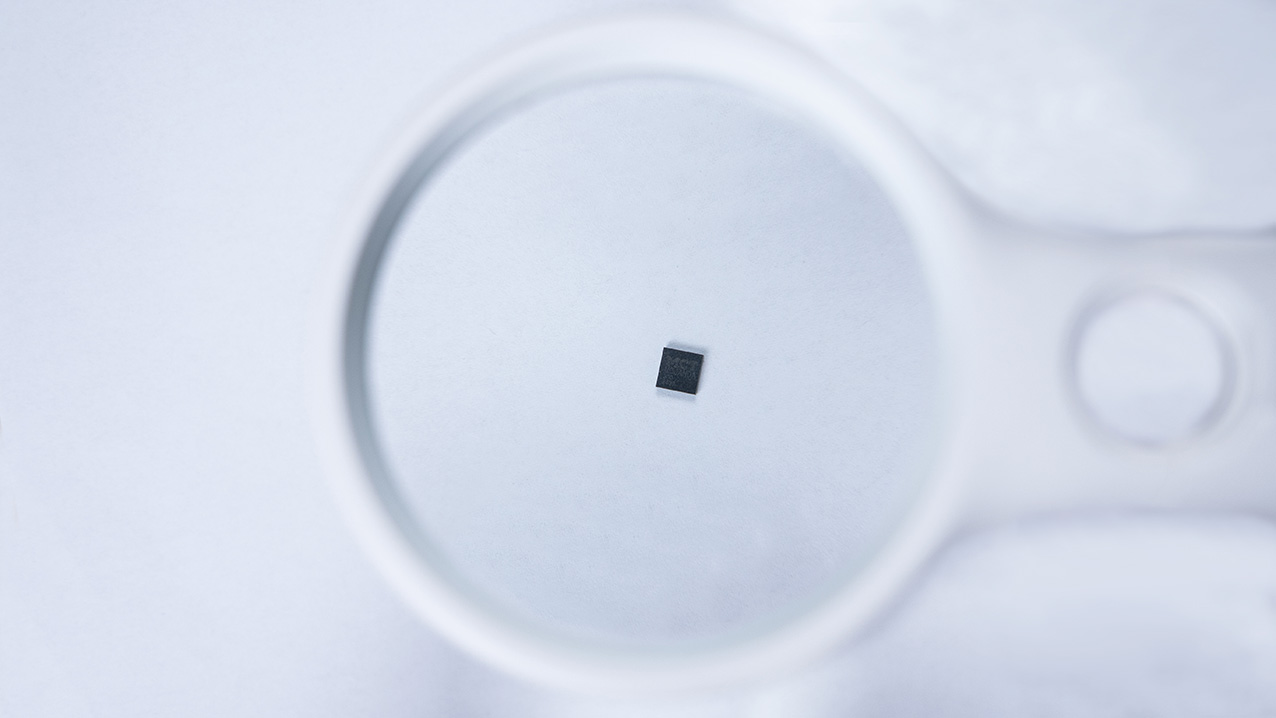

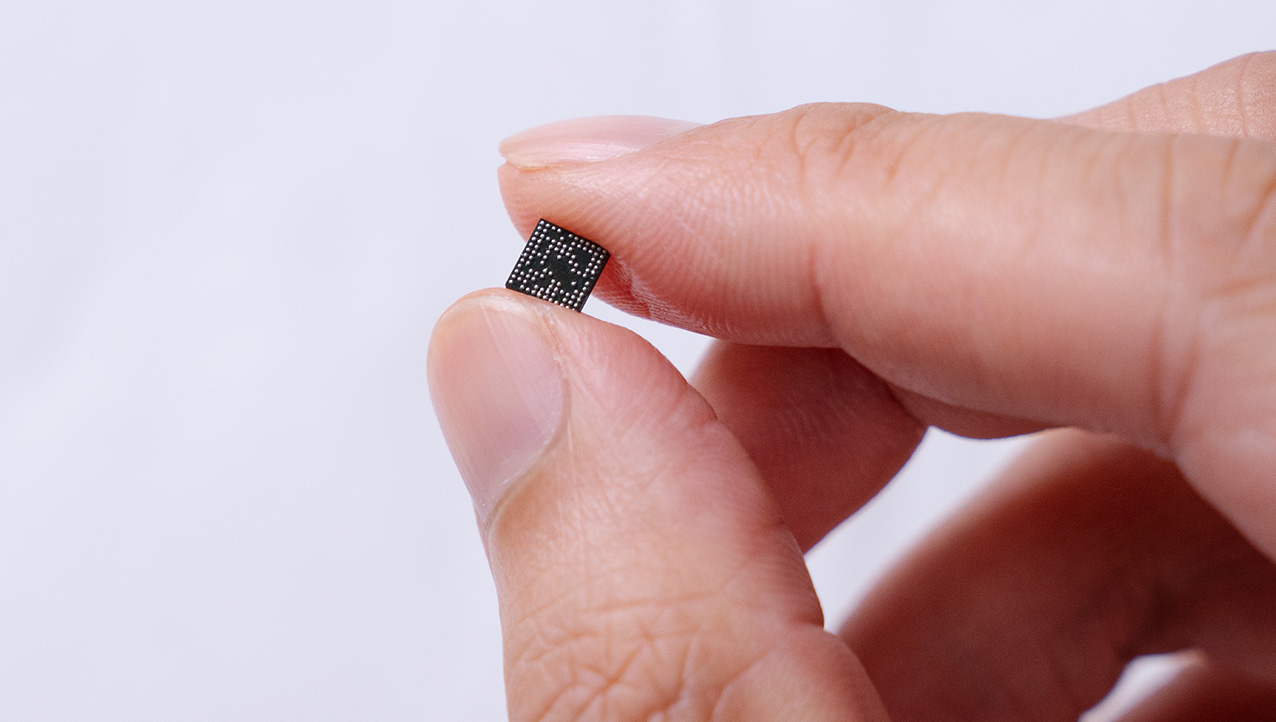

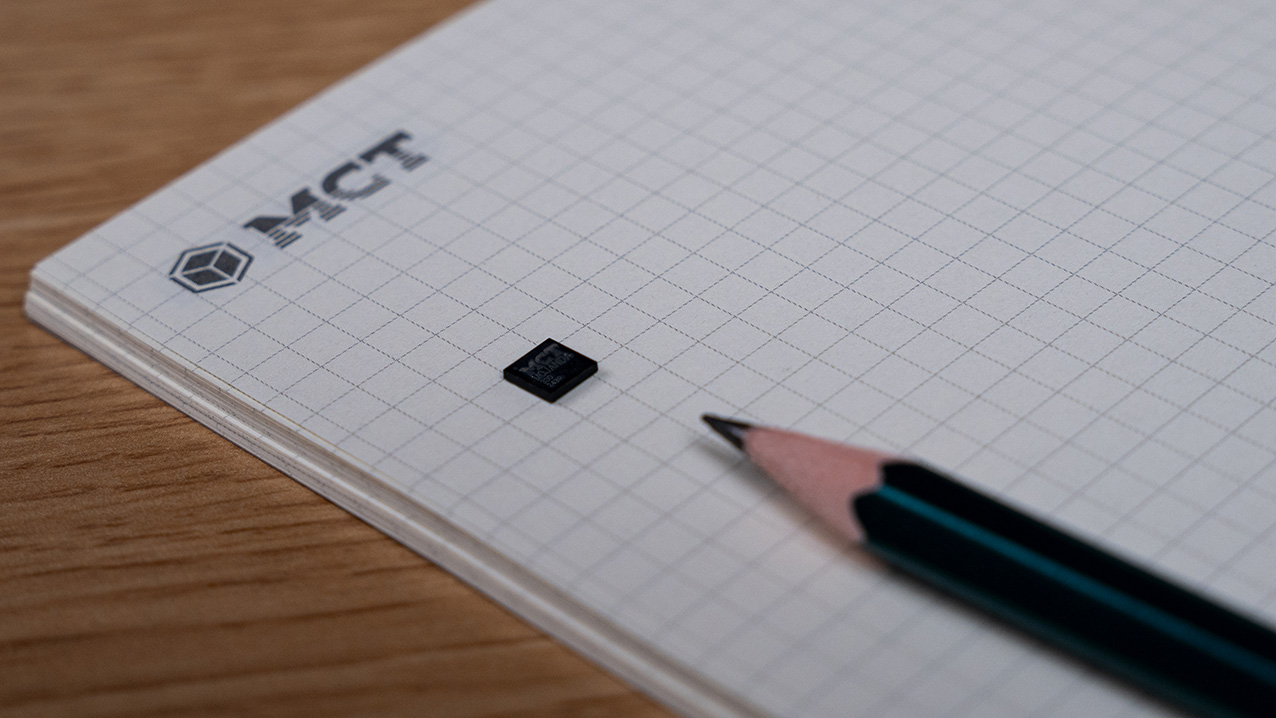

MOJANDA 330
MOJANDA 330 定位于更高等级的城区辅助驾驶系统，支持L1+L2+L5，L6可配，具备频域抗干扰能力，并融合RTK/PPP/INS算法，实现厘米级高精度定位。在城市高楼林立、立交密集等复杂环境下，依然能够稳定输出高鲁棒性定位结果。该芯片广泛应用于L2+及以上级别的乘用车、高速NOA、Robotaxi与无人配送车等场景，为路径规划与安全决策提供关键支持。
MOJANDA 330 is designed for advanced urban assisted driving systems, supporting L1+L2+L5 band bands with optional L6 compatibility. Equipped with band-domain anti-jamming capabilities and integrated RTK/PPP/INS fusion algorithms, it delivers centimeter-level high-precision positioning. Even in dense urban environments with tall buildings and complex overpasses, the chip ensures stable and robust positioning outputs. It is widely adopted in L2+ and higher-level passenger vehicles, high-speed NOA systems, Robotaxis, and autonomous delivery vehicles, providing critical support for path planning and safety decision-making.
级别：车规级
频段：全系统三频
尺寸：5mm x 5mm

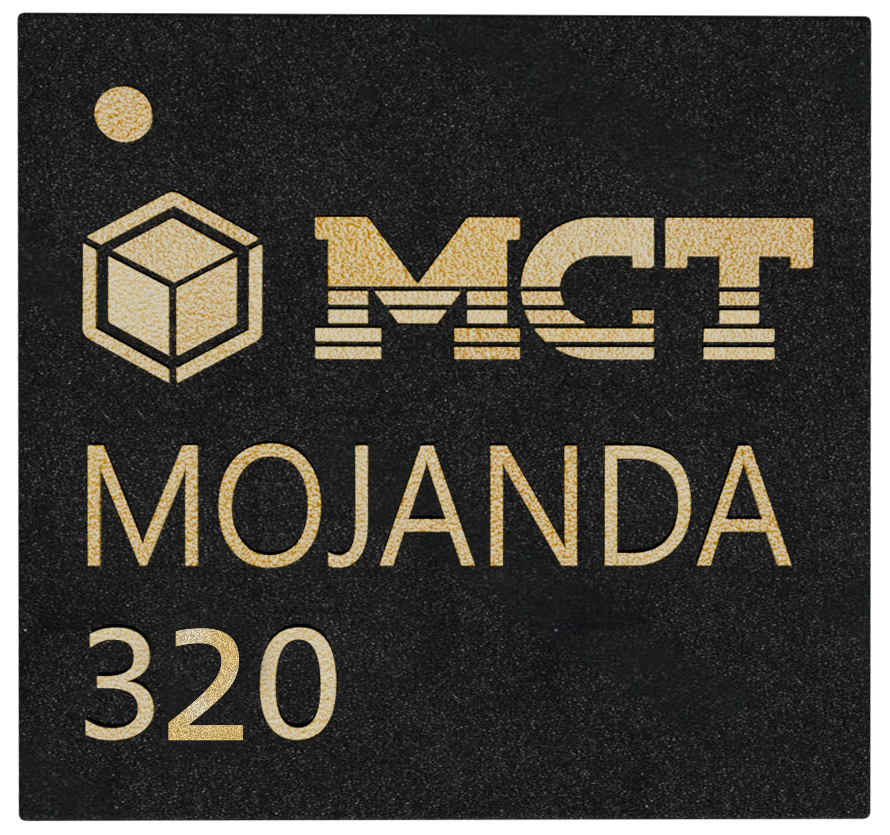

MOJANDA 320
MOJANDA 320 是MCT面向量产市场推出的车规级双频GNSS芯片，支持L1+L5频点，具备优异的性价比与稳定性能。其最高支持20Hz高频定位输出，集成完好性检测算法，确保定位结果实时可信。该芯片广泛适用于L2+高级辅助驾驶系统，尤其适合乘用车、智能公交、农机导航等对定位可靠性和成本平衡要求较高的场景，是辅助驾驶基础定位的首选方案。
MOJANDA 320 is an automotive-grade dual-frequency GNSS chip developed by MCT for mass production markets. Supporting L1+L5 signals, it offers outstanding cost-efficiency and reliable performance. With positioning update rates up to 20Hz and built-in integrity check algorithms, it ensures trusted real-time outputs. Ideal for L2+ ADAS applications, MOJANDA 320 is well-suited for passenger vehicles, smart buses, and autonomous agricultural machinery—delivering dependable and economical positioning for mainstream intelligent mobility.
级别：车规级
频段：全系统双频
尺寸：5mm x 5mm

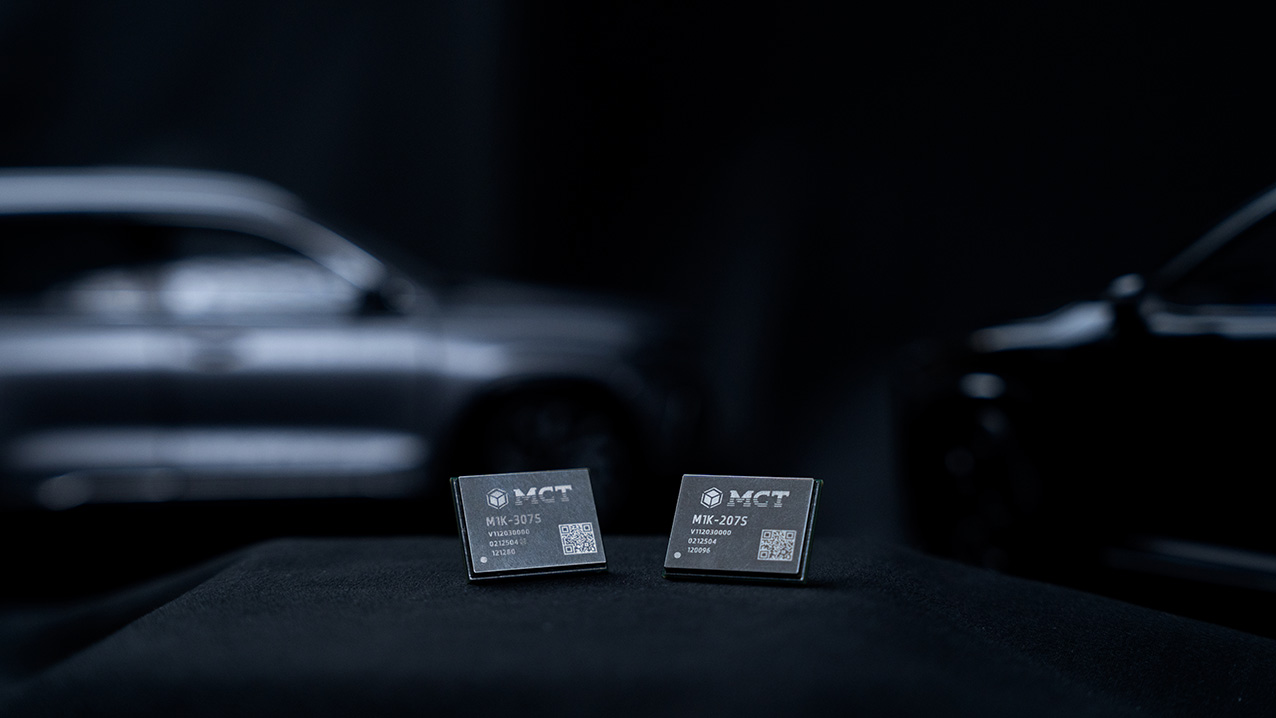

MOJANDA模组
车规级模组
M1K-317S
M1K-317S 是一款融合 RTK 与 IMU 的旗舰级车规定位模组，支持 GPS、北斗、GLONASS、Galileo、QZSS、SBAS 全系统三频信号接收，并集成高性能 IMU 与深耦合、紧耦合智能融合算法。在隧道、高架等遮挡场景中持续输出厘米级定位结果，支持轮速输入、20Hz 融合解算与 100Hz IMU 原始数据输出。具备完好性算法与抗干扰能力，适配高级别城区辅助驾驶系统对感知连续性与安全性的极致要求。
The M1K-317S is a flagship automotive-grade GNSS/INS module supporting full-constellation triple-band GNSS and integrated IMU. It features advanced tight/deep coupling algorithms for consistent centimeter-level positioning even in tunnels and obstructed environments. Supports wheel-speed aiding, 20Hz INS fusion output, and 100Hz raw IMU data. With integrity assurance and strong interference rejection, it enables continuous, reliable positioning for high-level Urban Assisted Driving.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：RTK/INS
最大输出频度 | Max Output Rate：100Hz
频点 | Band：三频 | Triple-band
INS：支持1颗IMU | 1 IMU
封装尺寸(mm）| Package Size (mm)：17*22
封装 | Package Type：LGA

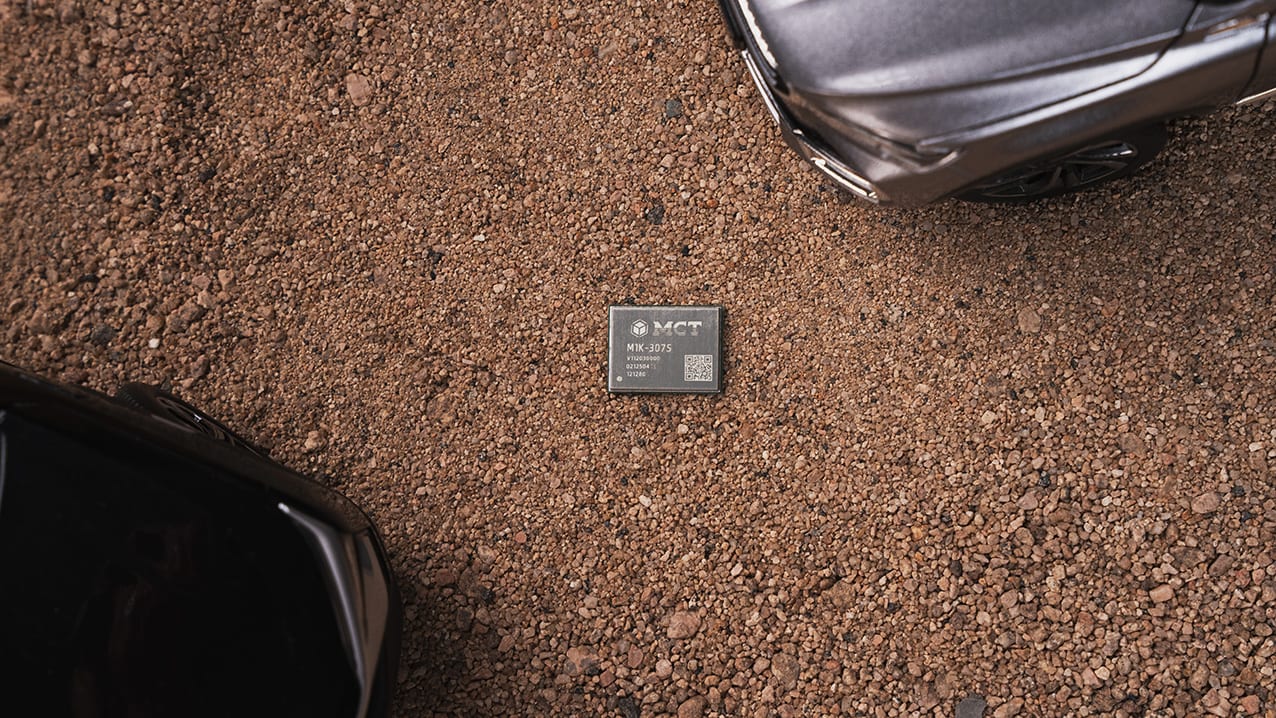

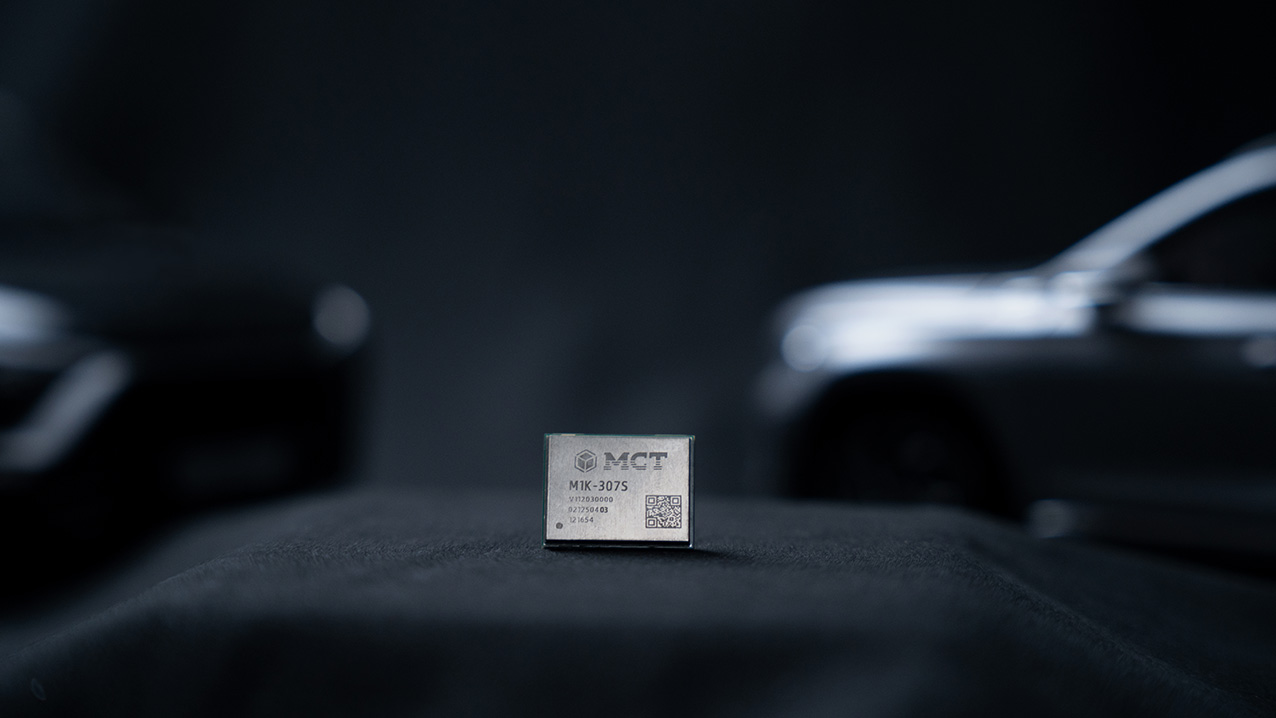

M1K-307S
M1K-307S 是一款车规级高精度 GNSS 定位模组，支持 GPS、北斗、GLONASS、Galileo、QZSS、SBAS 等全系统三频段信号接收，具备优异的抗多径性能，适用于城市复杂场景下的精准定位。支持片上 RTK 解算，精度优于 1 cm，RTK 输出频率可达 10Hz，PVT 及原始观测量最高支持 20Hz。集成完好性算法，提升定位置信度，满足城区辅助驾驶对安全性的高标准要求，并通过车规 AEC-Q104 认证。具备多种功耗工作模式与干扰抑制能力，适配不同使用环境。
The M1K-307S is an automotive-grade high-precision GNSS module supporting full-constellation triple-band reception (GPS, BDS, GLONASS, Galileo, QZSS, SBAS), with excellent multipath mitigation for urban environments. It features on-chip RTK processing with <1 cm accuracy, up to 10Hz RTK output and 20Hz for PVT and raw observations. Integrated integrity algorithms enhance confidence and determinism, while compliance with AEC-Q104 ensures automotive reliability. Multiple power modes and interference rejection make it adaptable to diverse application scenarios.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：RAW/RTK
最大输出频度 | Max Output Rate：10Hz
频点 | Band：三频 | Triple-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：17*22
封装 | Package Type：LGA

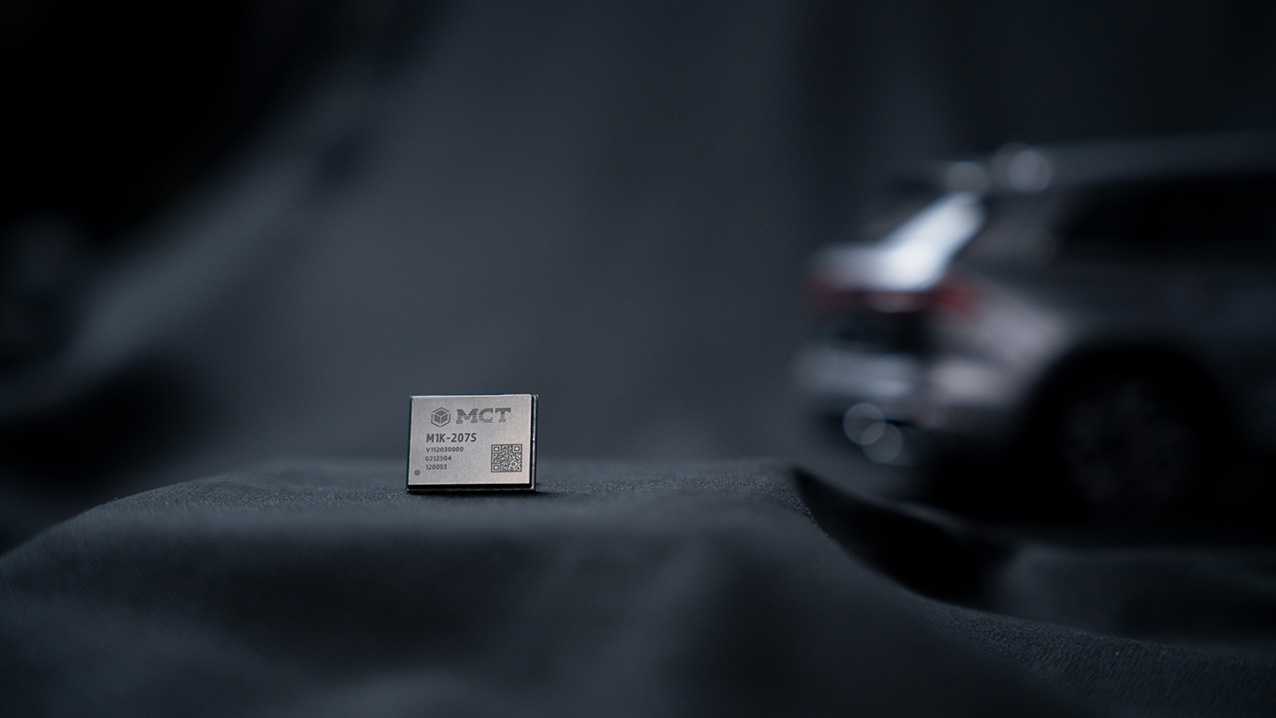

M1K-207S
M1K-207S 是一款车规级双频 GNSS 模组，支持 GPS、北斗、GLONASS、Galileo、QZSS、SBAS 等系统，接收 L1/L5 双频信号，提升城市复杂环境下的定位质量。具备片上 RTK 解算能力，定位精度优于 1 cm，支持最高 10Hz RTK 输出与 20Hz PVT/原始观测量输出。内置完好性算法，提高定位置信度与系统决策安全性，并通过 AEC-Q104 车规认证。支持多种功耗模式与抗干扰能力，适应多种智能驾驶场景需求。
The M1K-207S is a dual-frequency GNSS module designed for automotive use, supporting GPS, BDS, GLONASS, Galileo, QZSS, and SBAS with L1/L5 signal reception. It provides enhanced positioning in complex city environments and integrates on-chip RTK with <1 cm accuracy. Outputs include 10Hz RTK and 20Hz PVT/raw data. On-chip integrity algorithms and AEC-Q104 compliance ensure reliable performance and safety. Multiple power modes and interference suppression make it suitable for diverse ADAS applications.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：RAW/RTK
最大输出频度 | Max Output Rate：10Hz
频点 | Band：双频 | Dual-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：17*22
封装 | Package Type：LGA
M1K-116S
M1K-116S 是一款车规级卫星/惯性组合导航模组，支持 GPS、北斗等全星座单频定位，并融合车载 IMU 实现惯性航位推算导航。即使在隧道、地下停车场等无卫星信号环境中，该模组也能连续输出车辆位置，保障导航不中断。其小巧 12×16 mm 封装便于T-Box与座舱系统集成，为驾驶者提供始终在线、平滑精准的导航体验，提升驾驶安全与便利性。
The M1K-116S is an automotive-grade GNSS/INS integrated navigation module. Supporting single-frequency GNSS across major constellations and onboard IMU-based dead reckoning, it ensures continuous positioning even in GNSS-denied environments like tunnels and underground parking. Its compact 12×16 mm package enables easy integration into T-Box and cockpit systems, delivering uninterrupted, accurate navigation for a safer driving experience.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：PVT+DR
最大输出频度 | Max Output Rate：10Hz
频点 | Band：单频 | Single-band
INS：支持1颗IMU | 1 IMU
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LCC
工规级模组

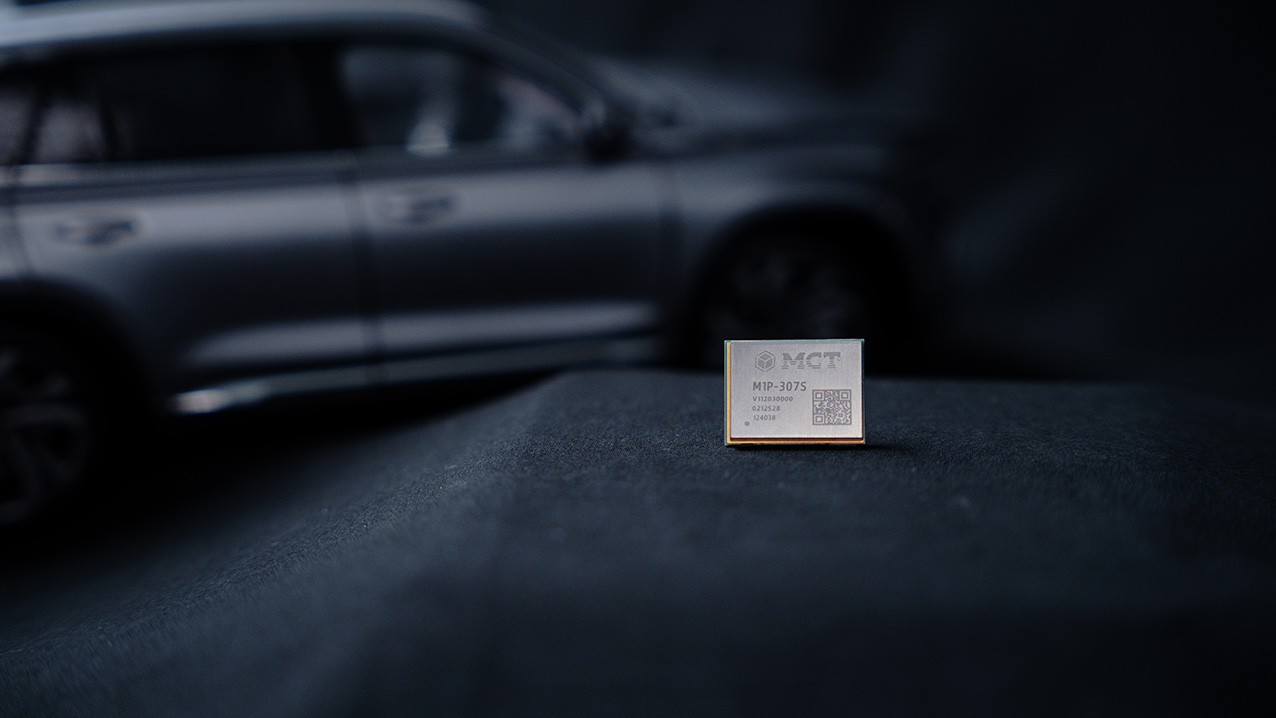

M1P-307S
M1P-307S 是一款工业级高精度 GNSS 模组，支持全系统三频信号接收（GPS、北斗、GLONASS、Galileo、QZSS、SBAS），具备优异的抗多径能力。支持片上 RTK 解算，最优定位精度达 1cm，RTK 输出最高支持 10Hz，PVT 及原始观测量最高 20Hz。内置完好性算法，支持多种功耗模式与干扰抑制，广泛应用于无人机、自动割草机、移动机器人、农业设备等高精度定位场景。
The M1P-307S is an industrial-grade GNSS module supporting full-constellation triple-band reception with excellent multipath resistance. On-chip RTK delivers up to 1 cm accuracy, with RTK output up to 10Hz and PVT/raw data at 20Hz. Integrated integrity algorithms, flexible power modes, and interference suppression make it ideal for drone, robotic mowers, mobile robots, agriculture automation, and high-precision industrial systems
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：RTK
最大输出频度 | Max Output Rate：10Hz
频点 | Band：三频 | Triple-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：17*22
封装 | Package Type：LGA
M1P-306S
M1P-306S 是一款小型化工业级 GNSS 模组，支持全系统三频信号接收，兼具高精度与小封装特性。片上 RTK 解算精度优于 1cm，支持 10Hz RTK 输出与 20Hz PVT/原始观测量输出。具备多种功耗工作模式与抗干扰能力，适用于无人机、自动割草机、共享设备、机器人等小型智能终端，对空间紧凑型定位系统提供高可靠解决方案。
The M1P-306S is a compact industrial-grade GNSS module supporting full-constellation triple-band signals. It combines high precision (<1 cm RTK) with small form factor, enabling integration into space-constrained devices. RTK supports up to 10Hz, and PVT/raw data up to 20Hz. Multiple power modes and anti-jamming capabilities make it ideal for drone, robotic mowers, shared mobility, and other compact intelligent systems.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：RTK
最大输出频度 | Max Output Rate：10Hz
频点 | Band：三频 | Triple-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LGA
M1P-206S
双频RTK定位，定位性能优异，封装小巧，适用于交通运输，共享两轮，商用两轮，民用两轮等场景。
Dual-band RTK positioning with excellent performance in a compact design. Ideal for transport, shared two-wheelers, commercial bikes, and civilian scooters.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：RTK
最大输出频度 | Max Output Rate：10Hz
频点 | Band：双频 | Dual-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LCC
M1P-216S
双频组合导航，提升在遮挡、震动等复杂环境下的持续导航能力，适用于两客一危车辆后装，工程车辆导航等。
Dual-band GNSS/INS fusion navigation enhances sustained performance under signal blockage and vibration. Suited for aftermarket installations in passenger & hazardous goods vehicles, and construction machinery.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：RTK
最大输出频度 | Max Output Rate：10Hz
频点 | Band：双频 | Dual-band
INS：支持1颗IMU | 1 IMU
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LCC
M1P-106S
单北斗PVT输出，小巧封装设计（12×16mm），简约稳定，适用于消费类资产管理、车辆追踪、宠物追踪、手持等应用场景。
Single-band Beidou PVT output in a compact 12×16mm design. Simple, stable, and ideal for consumer applications such as asset tracking, vehicle tracking, pet tracking, and handheld devices.
系统 | GNSS Support ：全系统 | All Constellations
定位能力/观测量 | Positioning Type：PVT
最大输出频度 | Max Output Rate：10Hz
频点 | Band：单频 | Single-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LCC
单北斗模组
M1K-327B
三频RTK搭配双IMU组合导航，最高支持100Hz高频输出，满足高精度定位及航向需求，适用于应用于农机自动驾驶、无人配送车、车辆辅助导航等高精度及定位连续性要求苛刻场景。
Triple-band RTK combined with dual-IMU fusion navigation, supporting up to 100Hz high-rate output. Designed for applications requiring high-precision and continuous positioning, such as autonomous farming, unmanned delivery vehicles, and assisted driving.
系统 | GNSS Support ：单北斗 | Single Beidou
定位能力/观测量 | Positioning Type：RTK/INS
最大输出频度 | Max Output Rate：100Hz
频点 | Band：三频 | Triple-band
INS：支持2颗IMU | 2 IMU
封装尺寸(mm）| Package Size (mm)：17*22
封装 | Package Type：LCC
M1K-307B
支持三频RTK与RAW观测量输出，定位精度高，适合于农机导航、车辆辅助导航等行业高精度应用场景，实现高性价比的国产导航部署。
Supports triple-band RTK and RAW data output with high positioning accuracy. Perfect for agricultural navigation and assisted vehicle navigation. Offers a high-performance, cost-effective domestic GNSS solution.
系统 | GNSS Support ：单北斗 | Single Beidou
定位能力/观测量 | Positioning Type：RTK/RAW
最大输出频度 | Max Output Rate：10Hz
频点 | Band：三频 | Triple-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：17*22
封装 | Package Type：LCC
M1K-216B
M1K-216B 是以北斗卫星导航为唯一信号源，采用 B1I/B1C,B2a 双频定位实现快速、精准的位置信息获取。其支持惯性传感融合，可在碰撞、隧道等卫星信号不稳定场景下持续跟踪车辆动态。
The M1K-216B relies solely on the BeiDou satellite navigation system, utilizing B1I/B1C,B2a dual-band positioning to deliver fast and accurate location data. It supports inertial sensor fusion, enabling continuous vehicle tracking even in challenging environments such as collisions or tunnels where satellite signals may be unstable.
系统 | GNSS Support ：单北斗 | Single Beidou
定位能力/观测量 | Positioning Type：PVT
最大输出频度 | Max Output Rate：n/a
频点 | Band：双频 | Dual-band
INS：支持1颗IMU | 1 IMU
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LCC
M1K-206B
双频PVT定位，小巧封装设计（12×16mm），集成便捷，部署灵活，支持基于eCall的车载设备终端，提升道路安全和应急响应效率。
Dual-band PVT positioning with a compact 12×16mm package, enabling easy integration and flexible deployment. Compatible with eCall-based in-vehicle terminals to enhance road safety and emergency response efficiency.
系统 | GNSS Support ：单北斗 | Single Beidou
定位能力/观测量 | Positioning Type：PVT
最大输出频度 | Max Output Rate：n/a
频点 | Band：双频 | Dual-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LCC
M1P-106B
单北斗PVT输出，小巧封装设计（12×16mm），简约稳定，适用于行业资产管理、行业车辆追踪等，经济实用，快速落地。
Single-band Beidou PVT output in a compact 12×16mm form factor. Simple and stable, ideal for industry-grade asset management and vehicle tracking. Cost-effective and ready for rapid deployment.
系统 | GNSS Support ：单北斗 | Single Beidou
定位能力/观测量 | Positioning Type：PVT
最大输出频度 | Max Output Rate：10Hz
频点 | Band：单频 | Single-band
INS：不支持 | n/a
封装尺寸(mm）| Package Size (mm)：12*16
封装 | Package Type：LCC
